Electrical Wiring Color Coding System: What Wire Colors Mean And How To Use Them Correctly

Electrical wiring color coding is crucial for ensuring the safety and functionality of electrical systems. The color coding system helps identify wires for their specific functions, which is vital for installation, maintenance, and troubleshooting. Understanding the color codes can prevent electrical accidents and ensure that electrical installations comply with regulations.


Why Electrical Wiring Color Coding is Important


The primary reason for color coding is safety. Different wire colors signify different functions within an electrical system. Misidentifying these can lead to dangerous situations, including short circuits, electrical shocks, or fires. Properly coded wiring ensures that anyone working on the system can easily and accurately identify each wire's purpose.


Another reason is standardization. Using a universal color coding system helps maintain consistency across electrical installations, making it easier for electricians and technicians to understand and work on various projects without confusion.

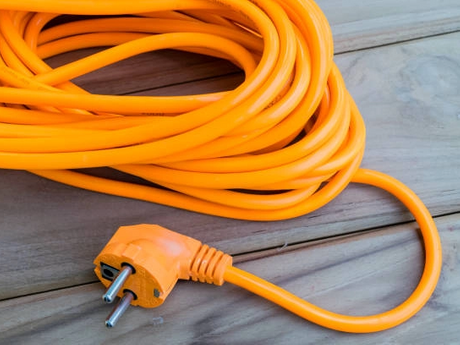

Electrical Wiring Color

Electrical Wire


Common Electrical Wiring Color and Their Meanings


Electrical wiring color can vary depending on the country and the specific electrical codes in use.


Black (and Red)


In most residential and low-voltage applications, black wires are typically used for hot (live) wires carrying electricity. Red wires often serve a similar purpose but can also designate a secondary hot wire in multi-phase circuits or indicate a switched leg (a wire that controls a light or outlet).


White (and Gray)


White wires are universally recognized as neutral wires, carrying current back to the source but not actively powering devices. In some cases, gray wires may also be used as neutrals, especially in newer installations or where white wires are already in use for a different purpose.


Green or Bare


Green wires and bare copper wires are designated as ground wires. They provide a path for excess electricity to flow safely to the earth, preventing electrical shock or fires.


Blue, Yellow, Orange


In multi-phase systems (such as three-phase power distribution), blue, yellow, and orange wires represent individual phases. These colors help identify each phase, ensuring proper connection and balancing loads.


Other Colors


While less common, other colors like purple, pink, or brown may be used in specific applications or to indicate special circuits (e.g., purple for smoke detectors). Always consult local codes and manufacturer guidelines for clarification.


International Wiring Color Codes


While the above color codes are standard in the United States, other countries may have different systems. For example:


  • United Kingdom

    • Live wire: Brown

    • Neutral wire: Blue

    • Earth wire: Green and yellow


  • German Standard

    • Live wire: brown or black.

    • Neutral wire: blue.

    • Ground wire: yellow-green stripes.


  • North American Standard (NEC)

    • Live wire: black, red or other color other than white, gray or green.

    • Neutral wire: white or gray.

    • Ground wire: green, green with yellow stripe or bare copper.


  • Europe (IEC)

    • Live wire: Brown or black

    • Neutral wire: Blue

    • Earth wire: Green and yellow


Understanding these differences is essential when working on international projects or with imported equipment.


How to Use Electrical Wiring Color Codes Correctly


1. Identify the Function of Each Wire

Before working on any electrical system, use a multimeter to verify the function of each wire, even if the color coding appears correct. This step ensures safety and accuracy.


2. Follow Local Codes and Standards

Electrical codes can vary by region. Always consult local regulations to ensure compliance. This may involve specific requirements for wire colors, insulation, and connections.


3. Proper Labeling and Documentation

Label all wires clearly during installation and maintenance. Keep a detailed record of the wiring layout, which will be invaluable for future troubleshooting and modifications.


4. Use Appropriate Tools and Equipment

Always use insulated tools and wear safety gear when working with electrical wiring. Ensure that all connections are secure and that the insulation is intact.


5. Regular Inspections and Maintenance

Regularly inspect electrical systems for signs of wear, damage, or corrosion. Address any issues immediately to maintain safety and functionality.


Why Adhere to the Color Coding System


  • Safety First: Proper color coding minimizes the risk of electrical accidents by reducing confusion during installation, maintenance, and troubleshooting.

  • Compliance: Adhering to color coding standards ensures compliance with local regulations, avoiding costly fines and potential legal issues.

  • Efficiency: Consistent color coding simplifies electrical installations, repairs, and upgrades, saving time and resources.


Introducing Aline Cable


As a leading provider of high-quality electrical wiring solutions, Aline Cable offers a wide range of products designed to meet the highest standards of safety and performance. Our product line includes stranded and solid wires, which are color-coded according to international standards to ensure easy identification and safe usage.


Our team of experts is dedicated to providing superior customer service and technical support. Whether you need wiring for residential, commercial, or industrial applications, Aline Cable has the right solution for you. Visit our website to learn more about our products and how we can help you with your electrical wiring needs.

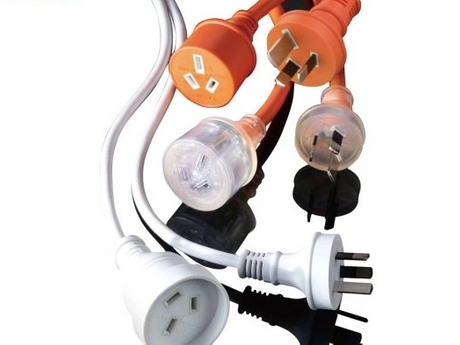

common electrical wire colors


Conclusion


Understanding and using electrical wiring color codes correctly is essential for safety and efficiency in any electrical installation. By following these guidelines and choosing reliable products from trusted manufacturers like Aline Cable, you can ensure that your electrical systems are safe, compliant, and effective. Always remember to stay updated with local regulations and best practices to maintain the highest standards of electrical safety.


For more information on our products and services, visit Aline Cable today.
